Fortress-Power Monitoring Set-Up Guide

Fortress-Power Monitoring Set-Up Guide

1. Download the Envy Fortress Power APP Located both in Apple App Store and Google Play Store on a mobile device.

How to set up the Envy Inverter Wi-Fi Dongle: Watch the YouTube Video

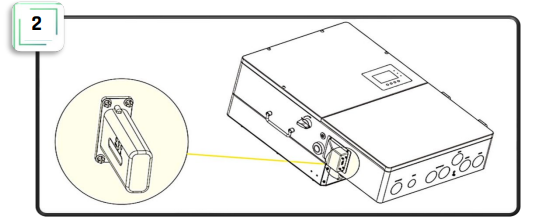

2. Plug the Dongle to the inverter while inverter is energized.

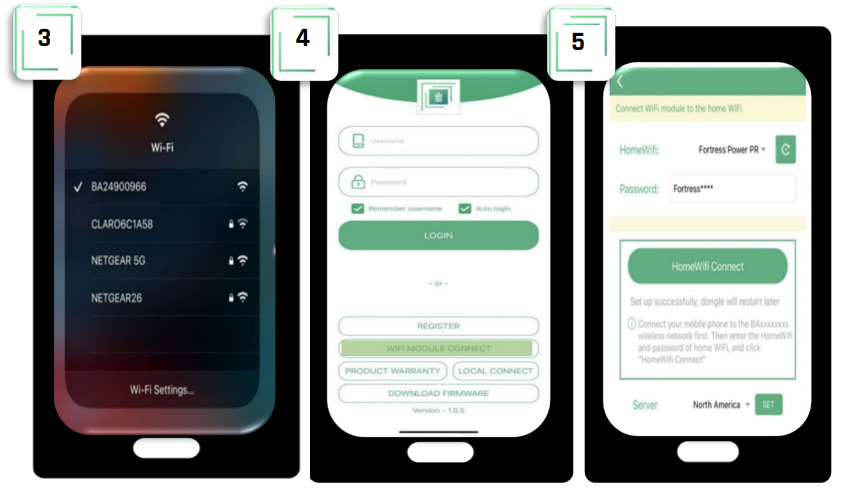

3. Connect to the Dongles Wi-Fi Network usually named BA********
4. Access the Envy App and Press the WIFI Module Connect.
5. Proceed to integrate the Dongle to the Home Wi-Fi by inputting the router’s SSID and Password. Server must be Set to North America. After clicking on Set, Click HomeWifi Connect. The Dongle will display 3 solid LED’s if the connection is successful. This may take 1 minute after selecting Home WIFI Connect.



If your cellphone does locate the customer’s Router as shown on the 5th step image, then proceed to access the web browser on your cellphone or laptop while being connected to the dongle’s Wi-Fi signal as seen in the 3rd step image. Type 10.10.10.1>User: admin, Password: admin. Select English on the top right side. Next, Select Station Mode Setting and input the internet router’s SSID and Password. Save and confirm that the Dongle has been integrated successfully by displaying 3 solid LEDs after 1 minute. Warning. You must not access nor change any other values in this web portal. Doing so, may break the Dongle and make it inoperable.

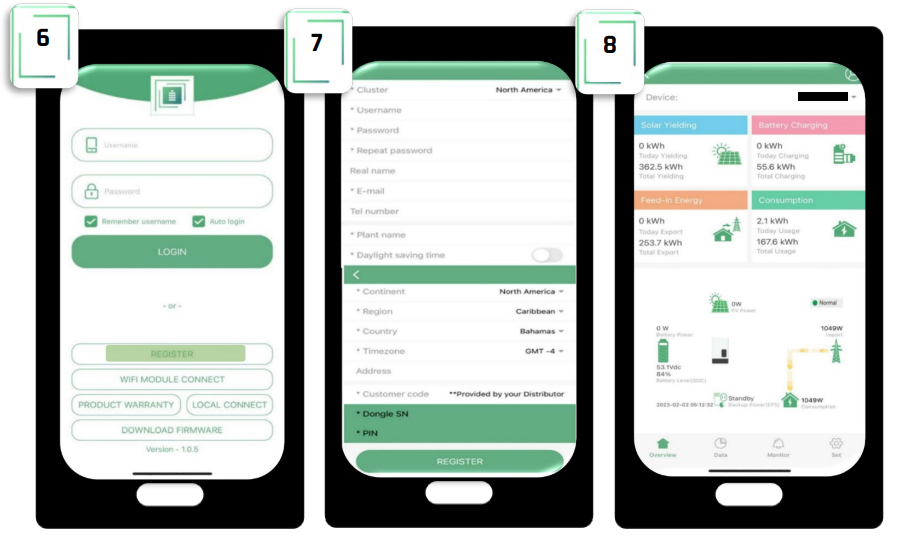

6. Select Register Tab
7. Complete End User Registration. Create End User username, password and make sure to select correct Continent, Region, Country, Time zone and physical Address. The Customer (Installer) Code shall be provided by Fortress Power to the Installer in which every installation done with this code will be reflected on the installer’s portal. The serial number and pin of the dongle is located on the side of the dongle and the packaging box.
8. Once Registered, the user can access the End User Portal where they can view direction of power flow, Solar, Battery, Export, and Consumption Data.
